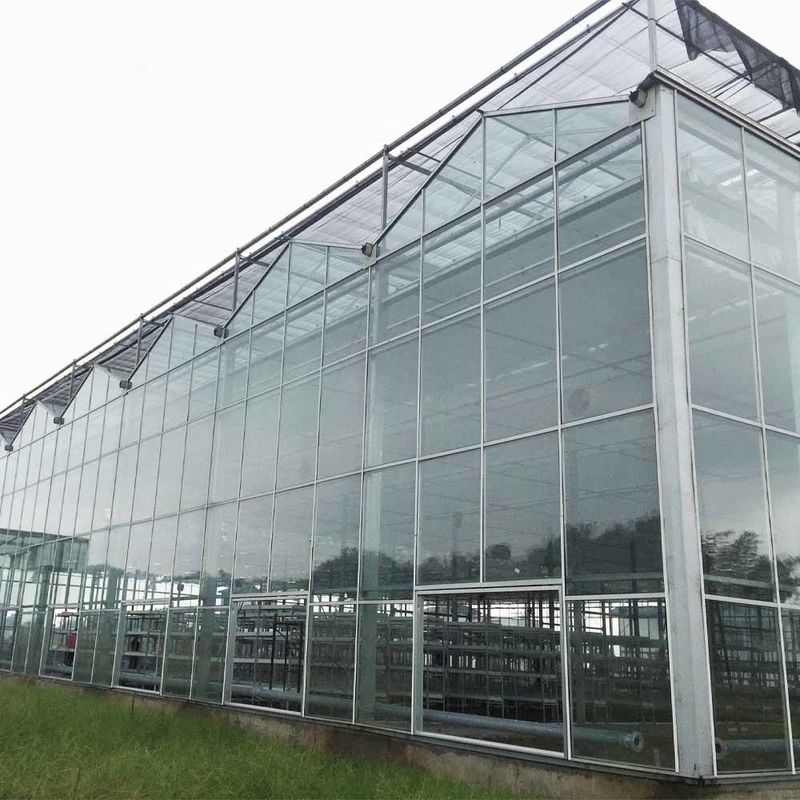

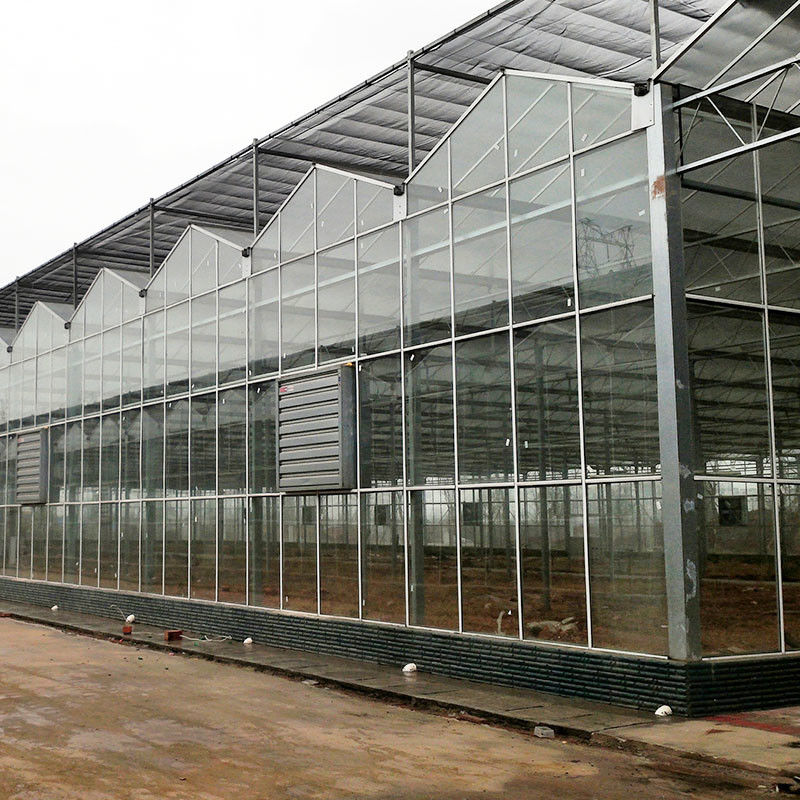

Venlo Type Agricultural Glass Greenhouse Tempered Panels Galvanized Steel Frame for Cucumber Cultivation
Glass has long been the gold standard for professional growers seeking uncompromising performance. Our agricultural glass greenhouse leverages ultra-clear, tempered glass panels to deliver unparalleled light penetration, thermal efficiency, and longevity – making it the ideal choice for crops requiring consistent sunlight, temperature, and humidity control.
Core Features & Benefits
1. Superior Light Transmission for Vigorous Growth
91% light transmittance via high-clarity, low-iron tempered glass (4mm/5mm thickness) ensures maximum photosynthesis, boosting crop yields by up to 20% compared to polycarbonate alternatives.
UV-stabilized glass filters harmful radiation while allowing beneficial wavelengths to pass, promoting healthier plant development and reducing leaf burn.
Anti-reflective coating minimizes light loss, ensuring uniform illumination across the entire growing area – critical for even crop maturation.
2. Robust Structural Durability
Tempered safety glass panels (4mm/5mm) offer exceptional impact resistance, withstanding hailstorms and accidental impacts (5x stronger than standard glass).
Hot-dip galvanized steel frame (zinc coating ≥300g/m²) provides corrosion resistance, supporting a 25+ year lifespan with minimal maintenance.
Engineered to withstand extreme weather: wind loads up to 160 km/h and snow loads of 60 cm, ensuring year-round operation in diverse climates.
3. Precision Climate Control
Advanced ventilation system: Motorized roof vents (20% of roof area) and side louvers enable rapid heat dissipation, while optional heat recovery systems retain warmth in cold seasons.
High thermal insulation: Double-glazed options reduce heat loss by 40% compared to single glass, lowering energy costs for heating.
Integrated shading systems: External aluminum screens (up to 90% shading) prevent overheating during peak sunlight, protecting sensitive crops.
4. Customizable for Every Crop
Tailored upgrades: Add automated irrigation, CO₂ enrichment systems, and smart sensors for precision monitoring (via mobile app integration).
|
|
|
|
|
|
as customer's requirements
|
|
|
|
4mm/5mm/5+6+5mm/5+9+5mm tempered glass
|
as customer's requirements
|
|
|
|
aluminum foil screen,Gear motor with anti water boxes and related accessories(A-type)
Rack and pinion and related accessories
|
as customer's requirements
|
|
|
|
Black sunshade net
Electric motor
Transmission system
|
as customer's requirements
|
|
|
|
100g/120g space cotton
Electric motor
Transmission system
|
as customer's requirements
|
|
|
|
1380*1380*400mm exhaust fan
10cm/15cm thickness cooling pad
|
as customer's requirements
|
|
|
|
top vetilation + side ventilation
|
as customer's requirements
|
|
|
Product features
1, Hot-dip galvanized steel skeleton, long using life.
2, Multi-span design, large using space.
3, High-cost performance.
4, Electric control greenhouse's systems, easy to operate.
Optional systems
Our advantages
FAQ
1.You are manufacture factory or trading company?
We are manufacture factory. You are welcomed to visit us at any time. In the workshop,it has a complete advanced equipment system for making steel structures and panels. So we can make sure the good quality and also the competitive price.
2.How about your quality control?
Our products have passed CE EN1090 and ISO9001:2008.
3.Can you offer design service?
Yes,we have an engineer team and can design for you according to your requirements.Architectural drawing,structure diagram,processing detail drawing and installation drawing will be made and let you confirm in different time of the project.
4.What's the delivery time?
The delivery time depends on the size and quantity of building.Generally within 30 days after receiving the payment.And partial shipment is allowed for big order.
5.Do you offer service for installation?
We will give you the detailed construction drawing and the construction manual which could help you to erect and install the building step by step. We also could send the engineer to your local to help you if need.
6.What's the payment term?
50% deposit and 50% balance before shipment.
7.How to get a quote from you?
You can contact us by email, phone, Alibaba TM, WhatsApp, Skype and so on and you will get reply within anytime.
